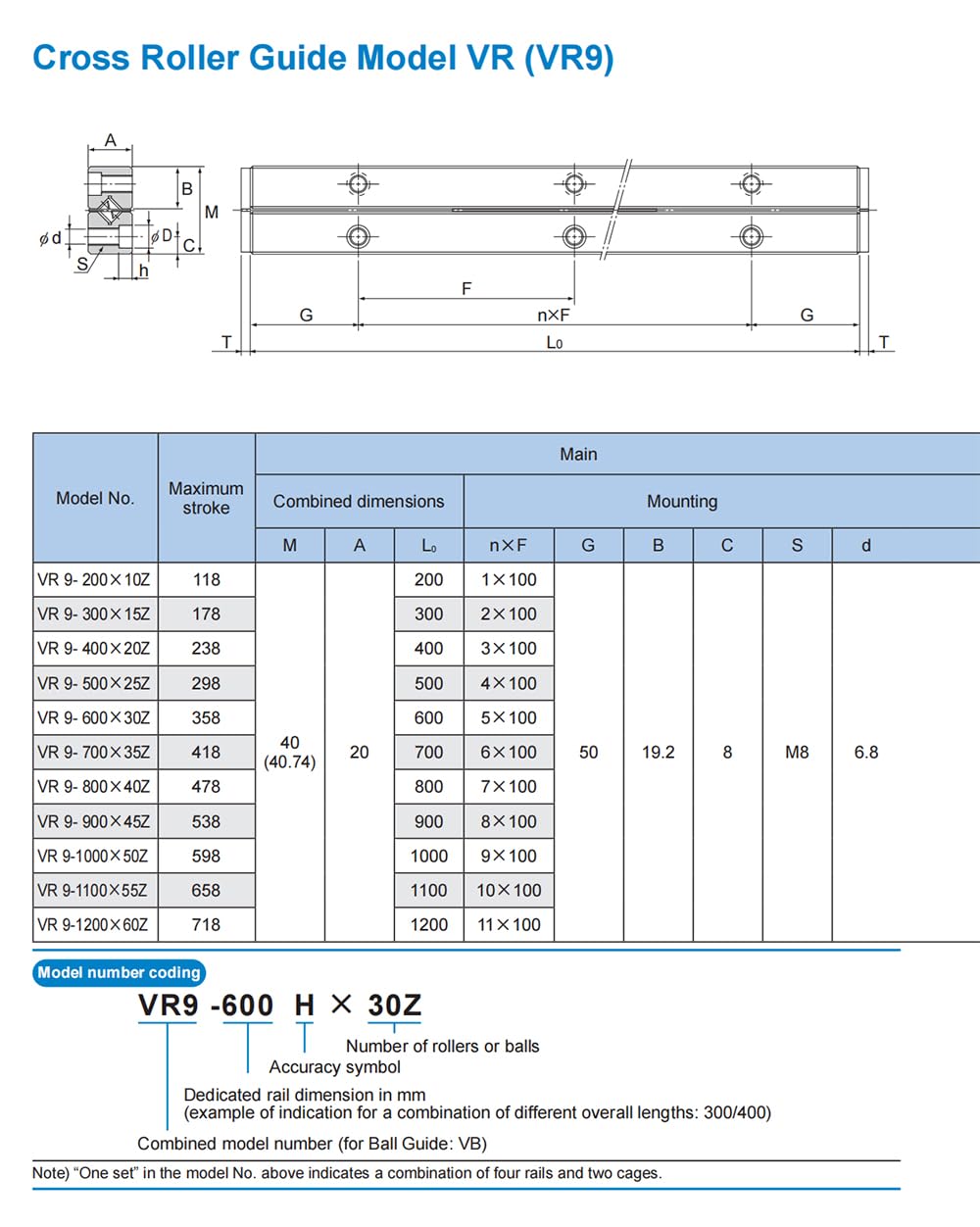

Original THK Cross Roller Guide VR9-200x10Z VR9-300x15Z VR9-400x20Z VR9-500x25Z VR9-600x30Z VR9-700x35Z VR9-800X40Z VR9-900x45Z VR9-1000x50Z VR9-1100x55Z VR9-1200x60Z Rails (VR9-700x35Z)
Product details
| Management number | 211206756 | Release Date | 2026/04/04 | List Price | $222.00 | Model Number | 211206756 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
In the Model VR, precision rollers are orthogonally aligned one after another in a roller cage that is combined with a dedicated rail having a raceway cut into a V-shape groove. When two units of the cross-roller guide are mounted in parallel, the guide system is capable of receiving loads in four directions. In addition, since the cross-roller guide can be given a preload, a clearance-free, highly rigid, and smooth slide mechanism is achieved. The Model VB is a low-friction, high-accuracy, finite LM system consisting of precision steel balls, arranged in short pitches in a Model B ball cage, and a Model V dedicated rail. The cross-roller guide and the ball guide are used in the slide units of various devices such as office automation equipment and peripherals, measuring instruments, printed circuit board drilling machines and other precision equipment, optic measuring machines, optic stages, handling mechanisms, and X-ray machines. Long Service Life, High Rigidity With a unique roller retaining mechanism, the effective contact length of the rollers is 1.7 times greater than the conventional type. Furthermore, the roller pitch interval is short and a sufficient number of rollers are installed, thus increasing the rigidity by two and the service life by six times greater than the conventional type. As a result, a safety-oriented design against vibrations and impact, which commonly occur in ordinary straight motion mechanisms, can be achieved. Smooth Motion With model VR, the rollers are individually held in a cage and roller pockets formed on the cage are in surface contact with the rollers to increase grease retention. Thus, smooth motion with little wear and friction is achieved. Highly Corrosion Resistant Model VR series and model VB series both include types made of stainless steel, which is highly corrosion resistant.
- In the Model VR, precision rollers are orthogonally aligned one after another in a roller cage that is combined with a dedicated rail having a raceway cut into a V-shape groove. When two units of the cross-roller guide are mounted in parallel, the guide system is capable of receiving loads in four directions. In addition, since the cross-roller guide can be given a preload, a clearance-free, highly rigid, and smooth slide mechanism is achieved
- Long Service Life, High Rigidity:With a unique roller retaining mechanism, the effective contact length of the rollers is 1.7 times greater than the conventional type. Furthermore, the roller pitch interval is short and a sufficient number of rollers are installed, thus increasing the rigidity by two and the service life by six times greater than the conventional type. As a result, a safety-oriented design against vibrations and impact, which commonly occur in ordinary straight motion mechanisms, can be achieved
- Smooth Motion:With model VR, the rollers are individually held in a cage and roller pockets formed on the cage are in surface contact with the rollers to increase grease retention. Thus, smooth motion with little wear and friction is achieved
- Highly Corrosion Resistant:Model VR series and model VB series both include types made of stainless steel, which is highly corrosion resistant
| Item Weight | 19.8 pounds |
|---|---|
| Manufacturer | AEDNX |
| Item model number | VR9-200x10Z |
| Package Dimensions | 4.33 x 4.33 x 4.33 inches |
